Master Flex manufacture high quality heavy duty power cable confirming to IS : 1554 (Part -1) L.T. 1100 volts grade

CONSTRUCTION DETAILS :

CONDUCTOR Plain bright annealed copper / aluminum, solid / stranded conductor confirming to IS : 8130 : 1984.

INSULATION Type A, B, & C (HR) grade according to IS : 5831 : 1984 amended up dated

INNER SHEATH Inner sheathing shall done by extrusion or by PVC tape binding that laid up cores shall nc. loose and prevent to water entering.

ARMOUR GI armour wire I strip provides not only mechanical support but also earthing. The material use an according to IS : 3975 : 1974 amended up dated. For single core cable non magnetic material is used that to reduce magnetic losses.

OUTER SHEATH Extruded Stl / ST2(HR, FRLS, Halogenfree FRLS) type PVC is used according to IS : 5831 : 1984.

APPLICATION In Thermal Power Station; Petrochemical Refineries; Steel & Cement Plant; Distribution System; Digital Control and Monitoring & Information systems; Air Ports; Building Towers; etc.

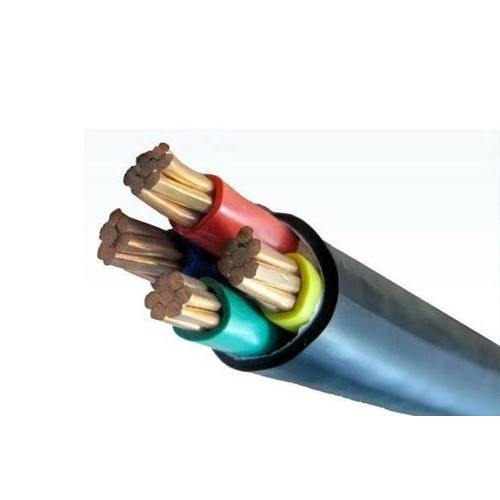

Master Flex manufacture heavy duty Power Cable comprising of cores Single / Two / Three / Three & Half / Four Of Copper / Aluminium Conductor, PVC Insulated cores laid up, PVC Inner Sheathed OR PVC tape binding, GI wire / StripArmoured & overall PVC sheathed cable confirming to IS : 1554 : Part-1.
