Classification :
-
Paired element Signal cables ( 4 to 20 mili amps )
-
Triad element Signal cables ( RTD application )
-
Quad element Signal cables
-
Pentad element Signal cables
-
4 pair unit elements Signal cables
-
Multi-pair Analog / Digital Signal cables up to 128 pairs
-
Customer Specification - Confirming to Standards specification like IS 1554(Pt-1), BS 5308 (Pt-1_ ) IEC 189 (Pt-1 & 2) VDE 0815 & 0816

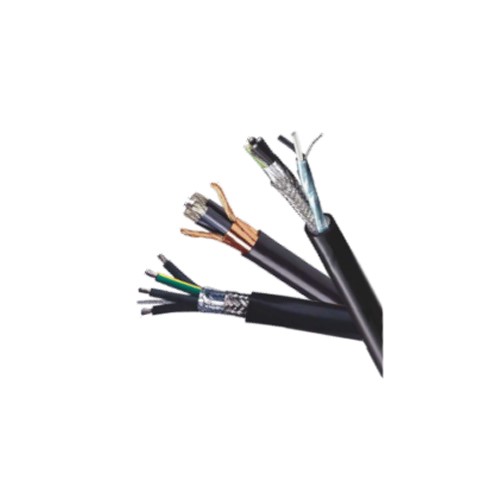

Typical Constructions for Instrument Signal Shielded Cables
Conductor : Electrolytic grade annealed bare / tinned copper, either Solid / Stranded / Multi stranded conductors.
Range : 0.5/0.75/1.0/1.5/2.5 Sq.mm
Voltage grade : (300v/500v 4 to 20 mili amps)
Insulation : General Purpose PVC/ Heat Resistant PVC/ LDPE / XLPE / ZHLS
Identification : code / No. Printed tapes over pairs/ Ring marked/ Dual color extruded. Color
Screening : Individual and / or overall with Aluminium-Polyster tape with tinned copper drain wire / Bare/Tinned Copper Wire Braid / Copper Tape with drain wire.
Inner Sheath : PVC/ HRPVC/ FRPVC/ FRLS PVC/ ZHLS
Armor : Hot Dip Galvanized Steel Round Wire / Strip.
Outer Sheath : PVC/ HRPVC/ FRPVC/ FRLS PVC/ ZHLS
